RBCuZn-B CuZnNi Flux Coated

  • AWS A5.8:      RBCuZn-B

    DIN 8513:      L-CuZn40

    DIN EN1044:   CU 301

Chemical Composition: %

CuSnSiFeNiMnZnOther
56-600.8-1.10.05-0.20.25-1.200.2-0.80.01-0.5Balance0.5

joining process

  • Acetylene torch, induction and resistance heating

Description and Applicaiton

  • Flux: Borax, Borax acid and agglomerant.


    Brazing alloy with good flowing properties, hardly sensitive to overheating.

    Suitable for gap brazing and coating of steel, cast iron, malleable cast iron,

    nickel and nickel alloys as well as copper and copper alloys with a solidus of > 900 °C.

Availability

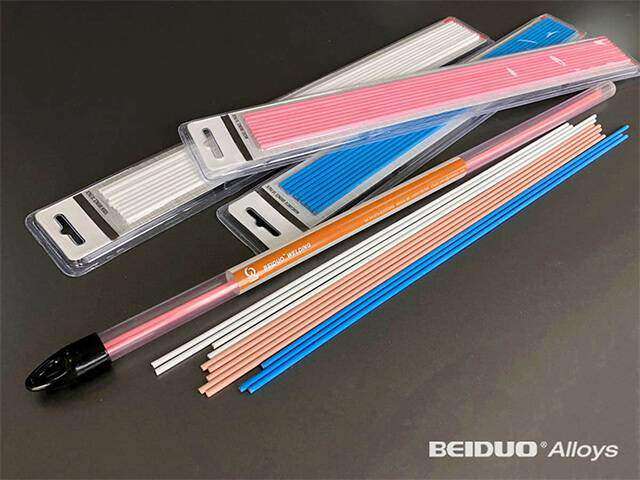

  • Rods: φ1.5-4.8mm  Length: 300-1000mm

    Other dimensions are available upon request

Mechanical and physical properties

  • Working temperature: 900-980 °C

    Melting range: 866-882 °C

    Density: 8.4 g/cm³

    Tensile strength: 350 N/mm²

    Elongation: 35 %

    Hardness: about 110 BHN
