Suitable for automatic wire flame brazing, high frequency induction brazing process, the manual flame brazing, protective gas tunnel furnace brazing process, etc.

Braze for joining aluminum to copper or aluminum.

Solder metal melt temperature (solidus / liquidus ): 385-410℃

The range of solder melting temperature: 420-470℃

Brazing temperature: Above 470℃

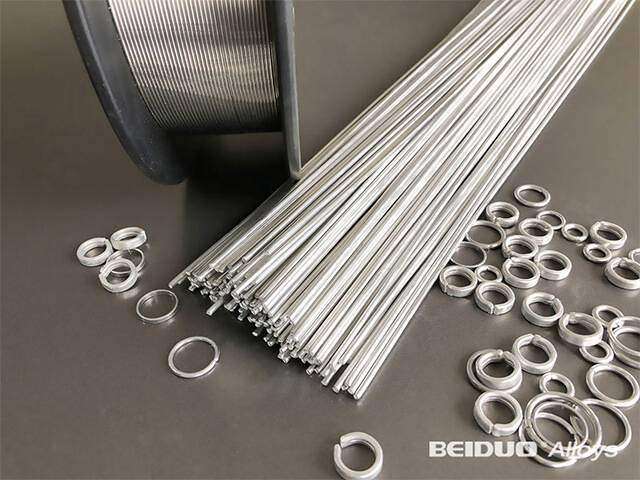

Wire Diameter:  1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.4mm

Packing Type:  Wire 0.5kg/1.0kg/2.0kg/5kg/spool

                         Rod:  0.5-2.0kg/plastic tube

                         Ring: 0.5-2kg/plastic bag.

Soldering flux is non-corrosive and non-clean.

When used, please take measures to protect operating personnel in case of high temperature liquid solder splash damages human body.

After taking apart the outer packing, please pay attention to seal and place them in a cool and dry place to avoid oxidation.
